ROCKET screw Hinge

cylindrical head ⎪ star ⎪ bichromate steel or black-zinc-coated steel ⎪ Cardboard box
ROCKET hinge screw bichromate and black zinc coated steel cardboard box
star screw driver

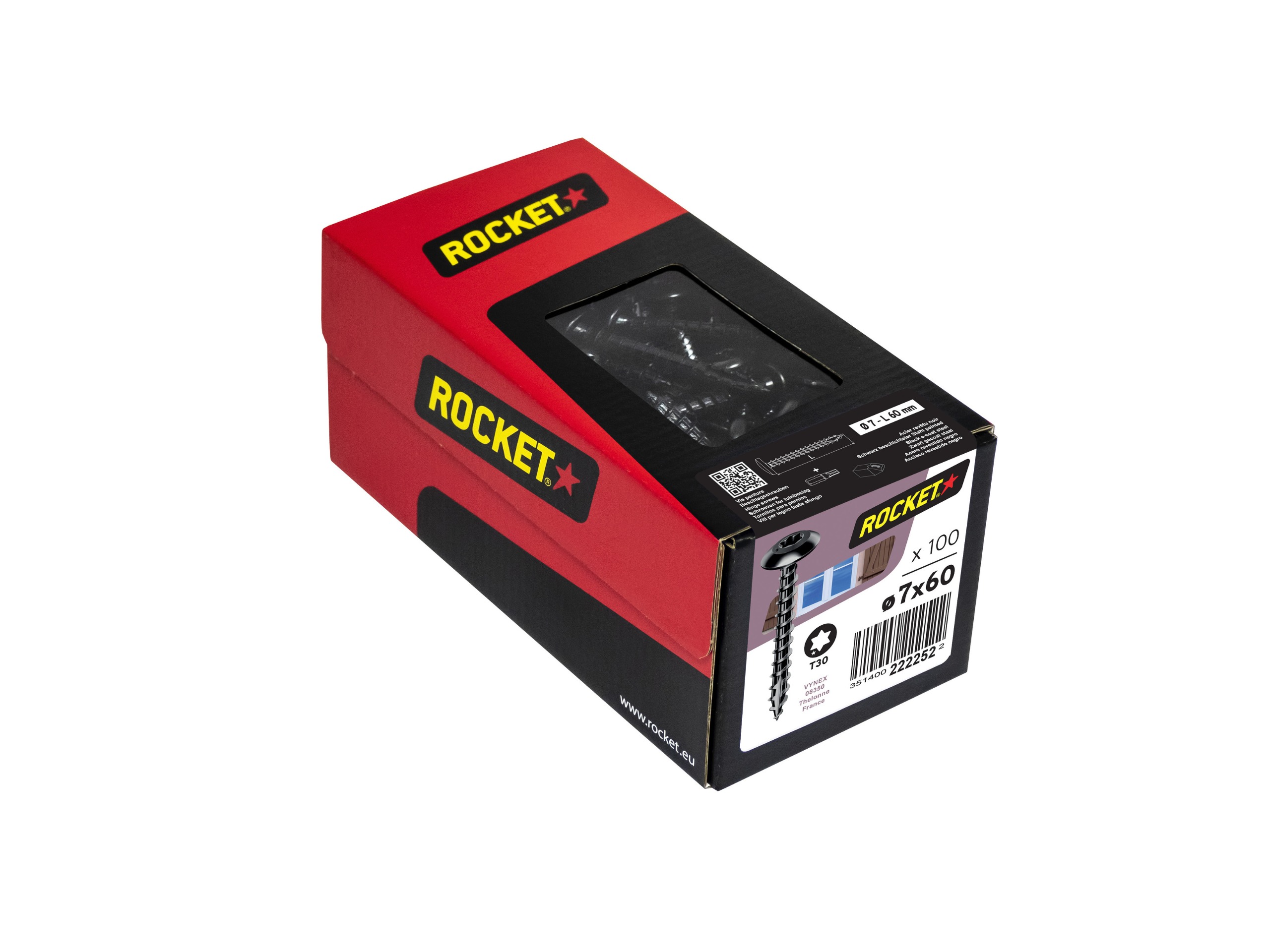

ROCKET hinge screws black zinc coated steel cardboard box
hinge screw

Everything you’d expect from a ROCKET screw, only for hinges.

Delivers enhanced durability.

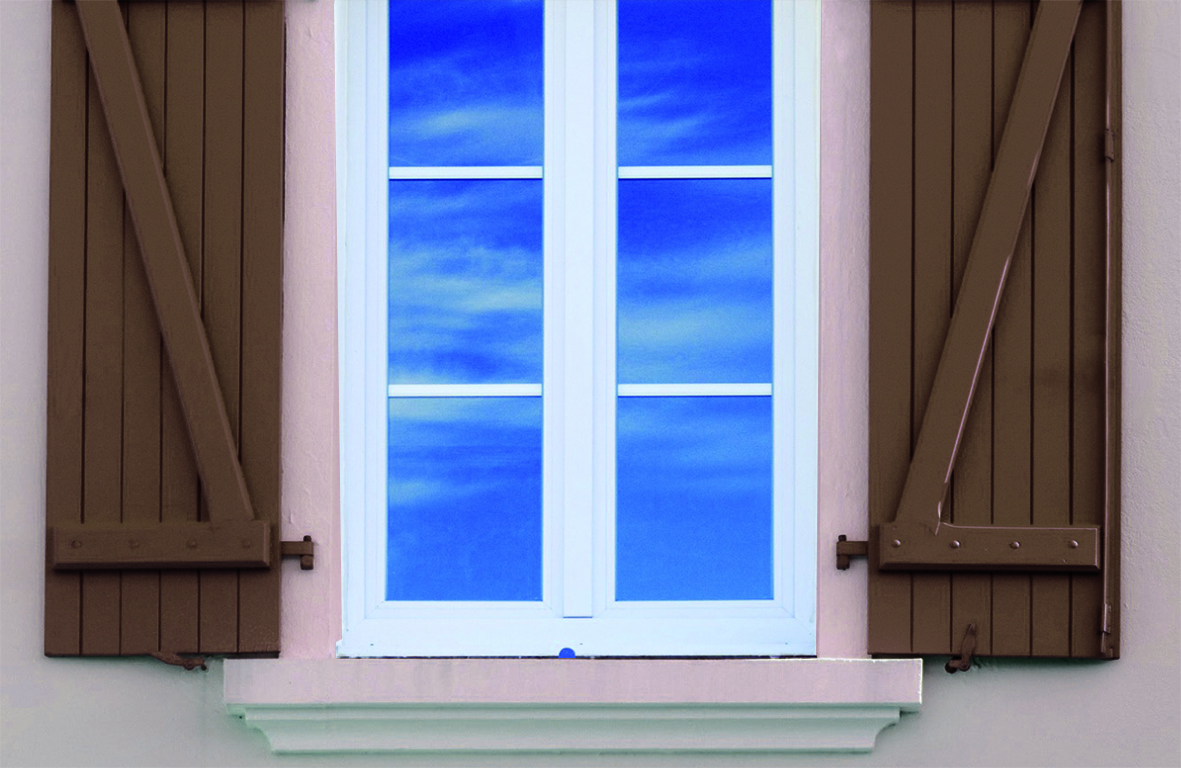

Non-split system ensures wood won’t split over time, particularly on shutters.

The thickness of the coating (black/bichromate) guarantees longevity for external use.

+ products

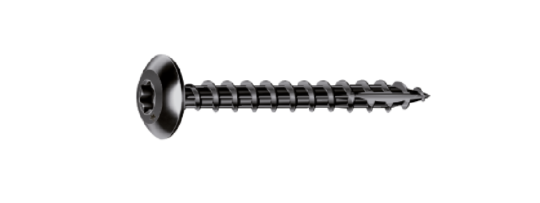

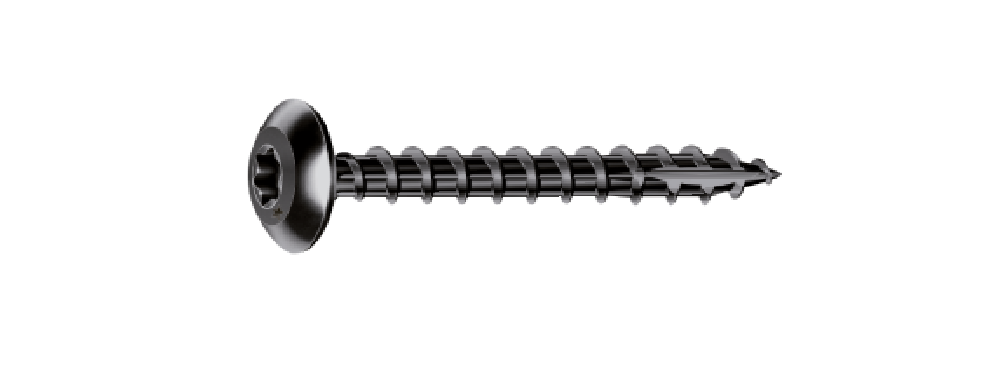

  • Wide cylindrical head
  • 6 grooves below the thread for enhanced breakaway torque
  • 40° thread angle = Enhanced pull-out resistance
  • Sharpened point to reduce splitting
  • 22 to 25° tapered point for precise screwing
FIND A STORE

Bichromate steel

Diameter Total Length Threaded Length Screw driver Nb of parts per
unit consu 		GENCOD
6 30 24 TX30 200 351400 222253 9
6 35 29 TX30 200 351400 222254 6
6 40 34 TX30 200 351400 222255 3
6 50 44 TX30 200 351400 222256 0
7 30 24 TX30 100 351400 222257 7
7 40 34 TX30 100 351400 222258 4
7 50 44 TX30 100 351400 222259 1
7 60 54 TX30 100 351400 222260 7
7 100 94 TX30 100 351400 225345 8
7 120 114 TX30 100 351400 225346 5
6 20 14 TX30 200 351400 227674 7
7 70 64 TX30 100 351400 227675 4

Black-zinc-coated steel

Diameter Total Length Threaded Length Screw driver Nb of parts per
unit consu 		GENCOD
6 30 24 TX30 200 351400 222245 4
6 35 29 TX30 200 351400 222246 1
6 40 34 TX30 200 351400 222247 8
6 50 44 TX30 200 351400 222248 5
7 30 24 TX30 100 351400 222249 2
7 40 34 TX30 100 351400 222250 8
7 50 44 TX30 100 351400 222251 5
7 60 54 TX30 100 351400 222252 2
6 20 14 TX30 200 351400 227676 1
7 70 64 TX30 100 351400 227677 8
CATALOGUE TECHNICAL SPECIFICATIONS

FOR EACH PROJECT, YOURS ROCKET SCREW
