Screw for frame white zinc-plated steel

We conduct regular quality audits in order to ensure quality standards are met. Our flagship product, the ROCKET screw, was designed internally, enabling its technical characteristics to be optimised (speed, tightening torque, breakaway torque, pull-out resistance).

As part of the CE marking to which ROCKET screws are subject, quality controls are carried out in the factory on each manufacturing batch, with a batch number used for product tracing purposes. All of our CE marked products undergo this same process.

Find out more about the regulations

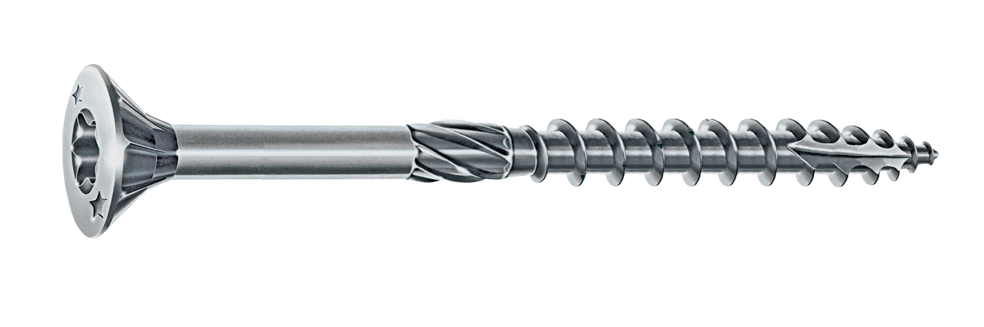

SCREW FOR FRAME

Countersunk head zinc coated steel



Ø6 Ø8
Driver depth 2,40/2,85 3,00/3,45
N° driver T30 T40
Dk 11,75±0,20 14,50±0,20
H 3,70 4,00
E 4,25 5,80
d 3,65/3,95 5,05/5,45
d1 5,80/6,20 7,75/8,25
P 4,50±10% L ±1,00
X 11,00/13,00 11,00/13,00
Minimum breaking torque 11,00 Nm 25,00 Nm

Ø6 - Ø8 L Total 60/400
Tolerance L ±1,00

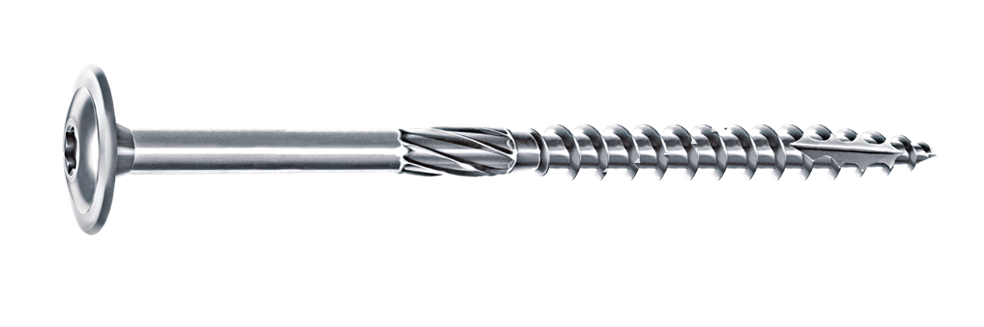

SCREW FOR FRAME

Wide flat head zinc coated steel



Ø6 Ø8
Driver depth 2,40/2,85 3,00/3,45
N° driver T30 T40
Dk 15,30± 0,80 21,50± 1,00
Dl 10,00 16,00
h 1,50 1,60
g 1,60± 0,20 1,80± 0,20
f 8,00 10,00
e 4,25 5,80
d 3,95-0,30 5,45-0,40
d1 6,00± 0,20 8,00± 0,20
P 4,50±10% 5,20± 10%
X 11,00/13,00 11,00/13,00
Minimum breaking torque 11,00 Nm 25,00 Nm

Ø6 - Ø8 L Total= 60/400
Tolerance L ± 1,00
