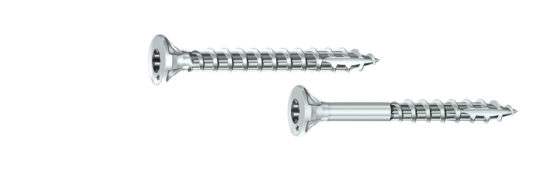

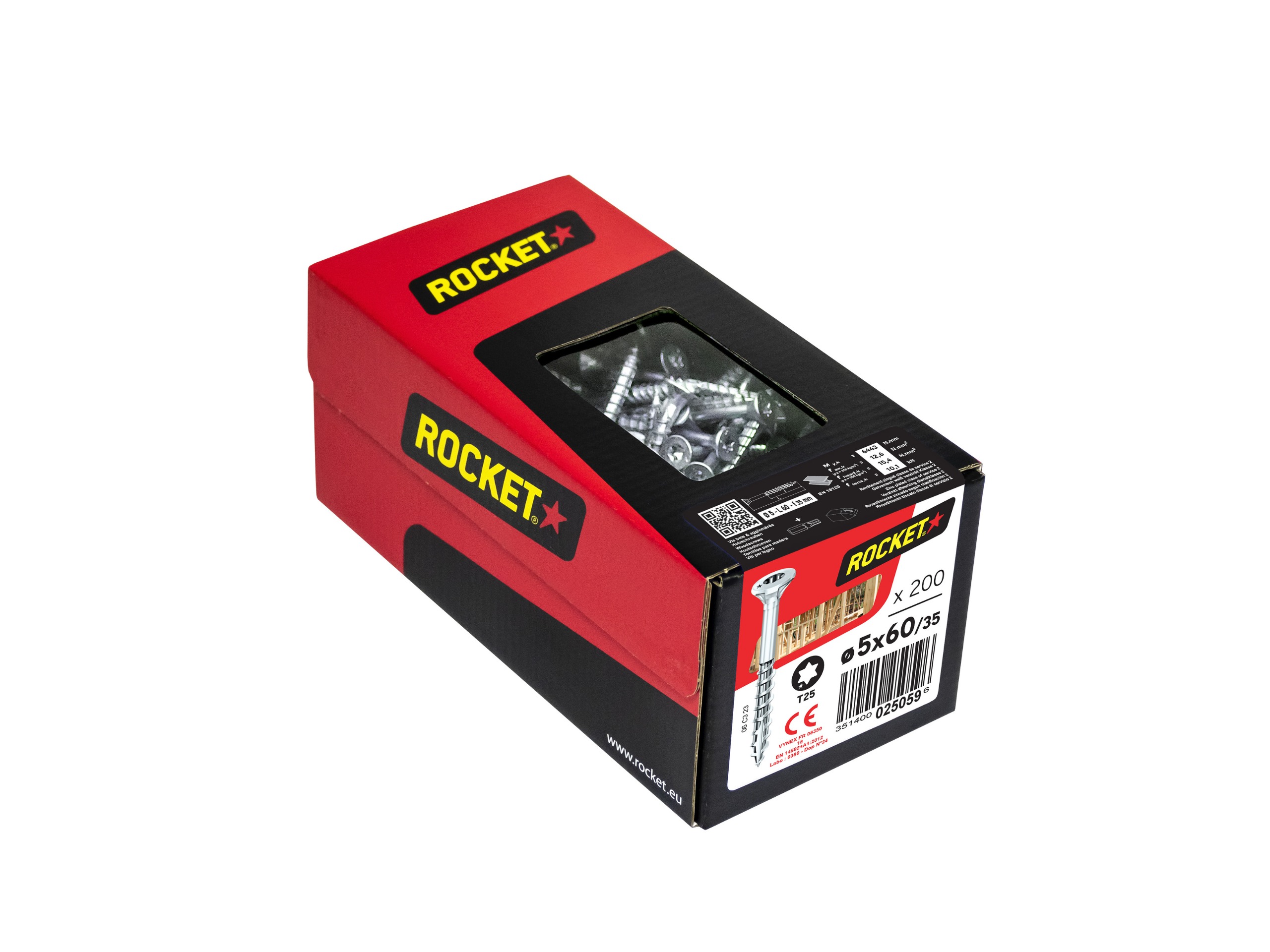

ROCKET Wood and chipboard screws

countersunk head ⎪ star ⎪ zinc-coated steel ⎪ Cardboard box
CE
ROCKET wood and chipboard screw star zinc coated steel carboard box
star screw driver
ROCKET wood and chipboard screw star zinc coated steel carboard box
ROCKET wood and chipboard screw

Making the difference through cutting-edge technology.

The technical characteristics of ROCKET screws (slim, sharpened point; ribbed thread; hard-wearing triple cone), allied to their physical characteristics (high-quality steel, thermal treatment, dry lubrication, etc.) make these high-quality screws.

ROCKET screws deliver performance levels that are significantly higher than with standard screws, ticking all the boxes: initial grip, break resistance, non-splitting and durability.

The star head provides a more secure grip during screwing and unscrewing, while allowing you to work in tricky positions, ensuring you have enough force to get the job done right.

+ products
  • 4 notches below the head = countersinking, better contact with the metal
  • Triple cone = Greater penetration and high split-resistance
  • Zinc-coated steel steel for easy screwing
  • 6 grooves below the thread for better tightening torque
  • Wider head for quicker screwing
  • Variable groove and thread diameters = reduce friction and save battery
  • Sharpened point eliminates wood splitting
FIND A STORE

Thread Total

Diameter Total Length Threaded Length Screw driver Nb of parts per
unit consu 		GENCOD
3 10 6 TX10 500 351400 025000 8*
3 12 8 TX10 500 351400 025001 5
3 16 12 TX10 500 351400 025002 2
3 20 16 TX10 500 351400 025003 9
3 25 21 TX10 500 351400 025004 6
3 30 26 TX10 500 351400 025005 3
3.5 12 7 TX15 500 351400 025008 4*
3.5 16 11 TX15 500 351400 025009 1
3.5 20 15 TX15 500 351400 025010 7
3.5 25 20 TX15 500 351400 025011 4
3.5 30 25 TX15 500 351400 025013 8
3.5 35 30 TX15 500 351400 025015 2
3.5 40 35 TX15 500 351400 025017 6
4 16 11 TX20 500 351400 025019 0
4 20 15 TX20 500 351400 025020 6
4 25 20 TX20 500 351400 025021 3
4 30 25 TX20 500 351400 025023 7
4 35 30 TX20 500 351400 025025 1
4 40 35 TX20 500 351400 025027 5
4 45 40 TX20 500 351400 025029 9
4 50 45 TX20 500 351400 025031 2
4.5 20 14 TX20 500 351400 025036 7
4.5 25 19 TX20 500 351400 025037 4
4.5 30 24 TX20 500 351400 025038 1
4.5 35 29 TX20 500 351400 025040 4
4.5 40 34 TX20 500 351400 025042 8
5 20 14 TX25 500 351400 025048 0
5 25 19 TX25 500 351400 025049 7
5 30 24 TX25 500 351400 025051 0
5 45 39 TX25 500 351400 025055 8
5 50 44 TX25 500 351400 025057 2
6 30 22 TX30 200 351400 025066 4

* References without end cutting.

Thread Partial

Diameter Total Length Threaded Length Screw driver Nb of parts per
unit consu 		GENCOD
3 35 22 TX10 500 351400 025006 0
3 40 22 TX10 500 351400 025007 7
3.5 30 18 TX15 500 351400 025012 1
3.5 35 22 TX15 500 351400 025014 5
3.5 40 22 TX15 500 351400 025016 9
3.5 50 30 TX15 500 351400 025018 3
4 30 18 TX20 500 351400 025022 0
4 35 22 TX20 500 351400 025024 4
4 40 22 TX20 500 351400 025026 8
4 45 30 TX20 500 351400 025028 2
4 50 30 TX20 500 351400 025030 5
4 55 35 TX20 500 351400 025032 9
4 60 35 TX20 500 351400 025033 6
4 70 45 TX20 500 351400 025034 3
4 80 45 TX20 200 351400 025035 0
4.5 35 22 TX20 500 351400 025039 8
4.5 40 22 TX20 500 351400 025041 1
4.5 45 30 TX20 500 351400 025043 5
4.5 50 30 TX20 500 351400 025044 2
4.5 55 35 TX20 500 351400 025045 9
4.5 60 35 TX20 500 351400 025046 6
4.5 70 45 TX20 200 351400 025047 3
5 30 18 TX25 500 351400 025050 3
5 35 22 TX25 500 351400 025052 7
5 40 22 TX25 500 351400 025053 4
5 45 30 TX25 500 351400 025054 1
5 50 30 TX25 500 351400 025056 5
5 55 35 TX25 200 351400 025058 9
5 60 35 TX25 200 351400 025059 6
5 70 45 TX25 200 351400 025060 2
5 80 50 TX25 200 351400 025061 9
5 90 50 TX25 200 351400 025062 6
5 100 60 TX25 200 351400 025063 3
5 110 70 TX25 200 351400 025064 0
5 120 70 TX25 150 351400 025065 7
6 40 22 TX30 200 351400 025067 1
6 50 30 TX30 200 351400 025068 8
6 60 35 TX30 200 351400 025069 5
6 70 45 TX30 150 351400 025070 1
6 80 50 TX30 150 351400 025071 8
6 90 50 TX30 150 351400 025072 5
6 100 60 TX30 150 351400 025073 2
6 110 70 TX30 100 351400 025074 9
6 120 70 TX30 100 351400 025075 6
6 130 70 TX30 100 351400 025076 3
6 140 70 TX30 100 351400 025077 0
6 150 70 TX30 100 351400 025078 7
6 160 70 TX30 100 351400 025079 4
6 180 70 TX30 100 351400 025080 0
6 200 70 TX30 100 351400 025081 7
